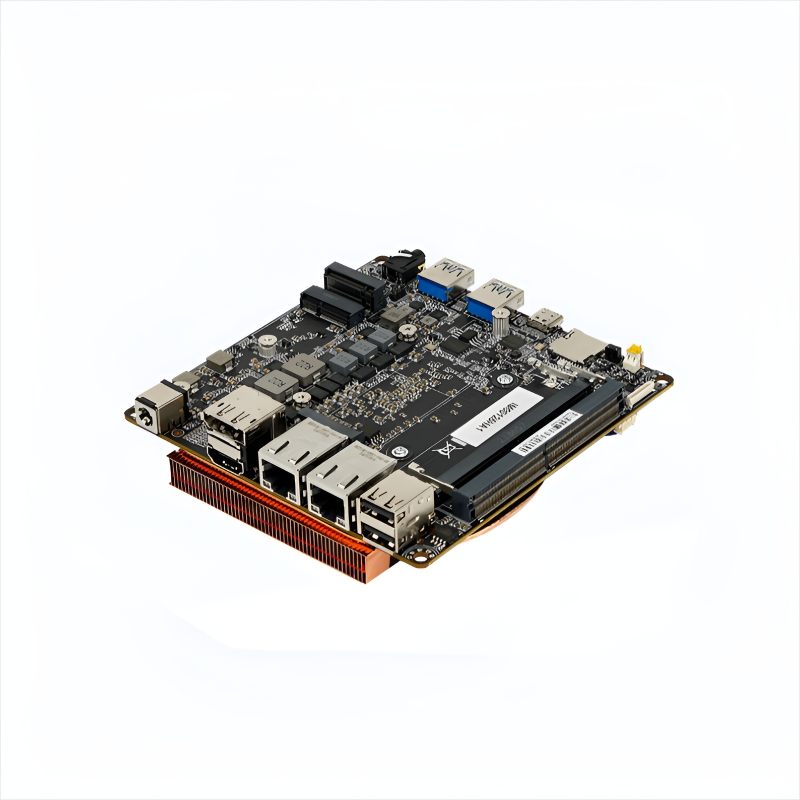

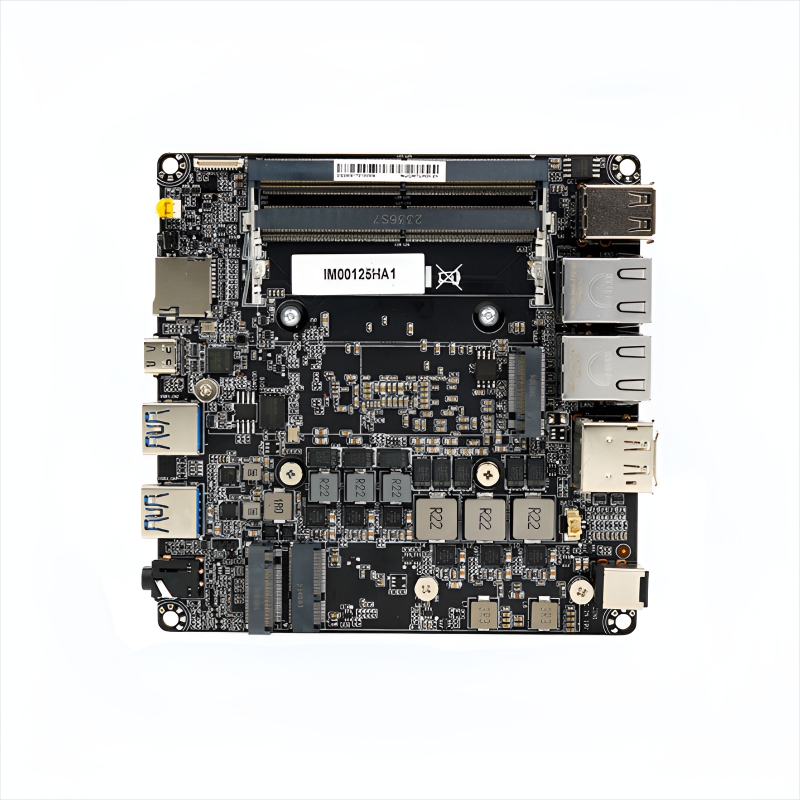

Mini motherboard Model：NUC- MTLH01

Model：NUC- MTLH01

Details introduction: 》Intel ® 14th generation Lake U/H Processor (125H/155H) 》Supports dual channel SO-DIMM, DDR5 memory, 5600MHz, Max96GB 》Support three display synchronous asynchronous, DP+HDMI+TypeC 》Supports Intel dual Ethernet ports (2.5G) 》4 USBs: 2 * USB3.2+2 * USB2.0 》1 Type-C interface (supporting Thunderbolt 4 40 Gbps/display/power supply) 》1 M.2 M Key slot (SATA/PCIe x4 adaptive) 》1 M.2 M Key slot (SATA) 》1 M.2 E Key slot (WIFI/Bluetooth) Main applications: Multi screen office workstations, AI assisted office, file servers/NAS, enterprise level soft routers, edge AI inference, compact game consoles, HTPC media centers, educational cloud terminals. Desktop cluster management, digital signage controller.

Tel:+86-18938679872

Inquiry

Product specifications

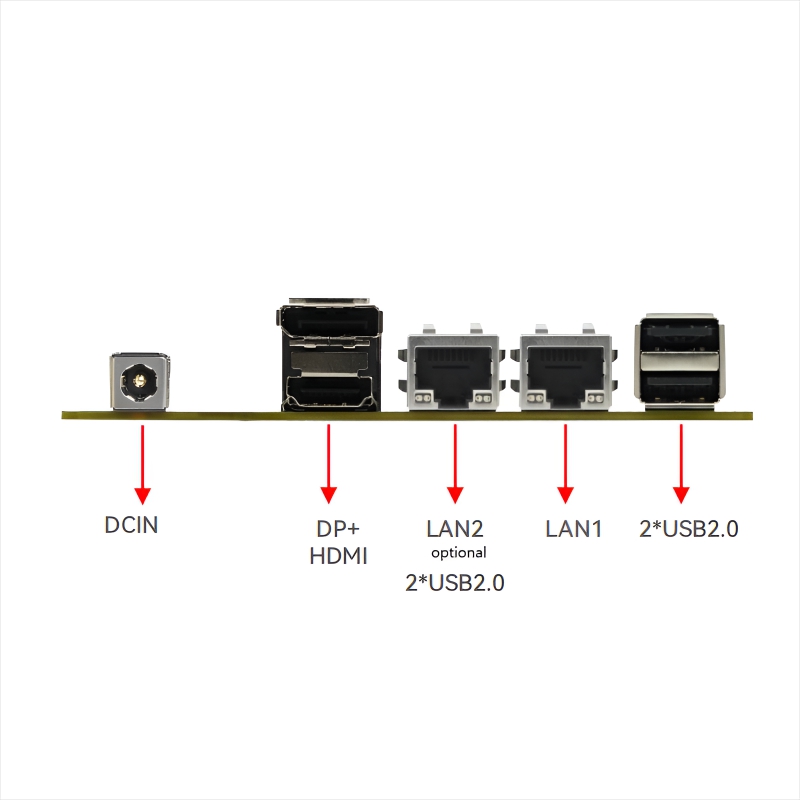

processor	Intel® 14代 Lake U/HProcessor(125H/155H)	Rear I/O interface	1*DC_IN
chipset	Intel® SOC		1DP +1HDMI
display chip	Intel® Arc™ graphics		1LAN2 (Optional 2USB2.0)
display output	DP1.4 + HDMI2.0 + 1*Type-C (DP1.48K@60Hz, HDMI2.04K@60Hz)		1*LAN1
Multi display support	Three display synchronous asynchronous		2*USB2.0
USB	2 * USB 3.2 Gen2 (10Gbps)+2 * USB 2.0+1 * Type-C interface

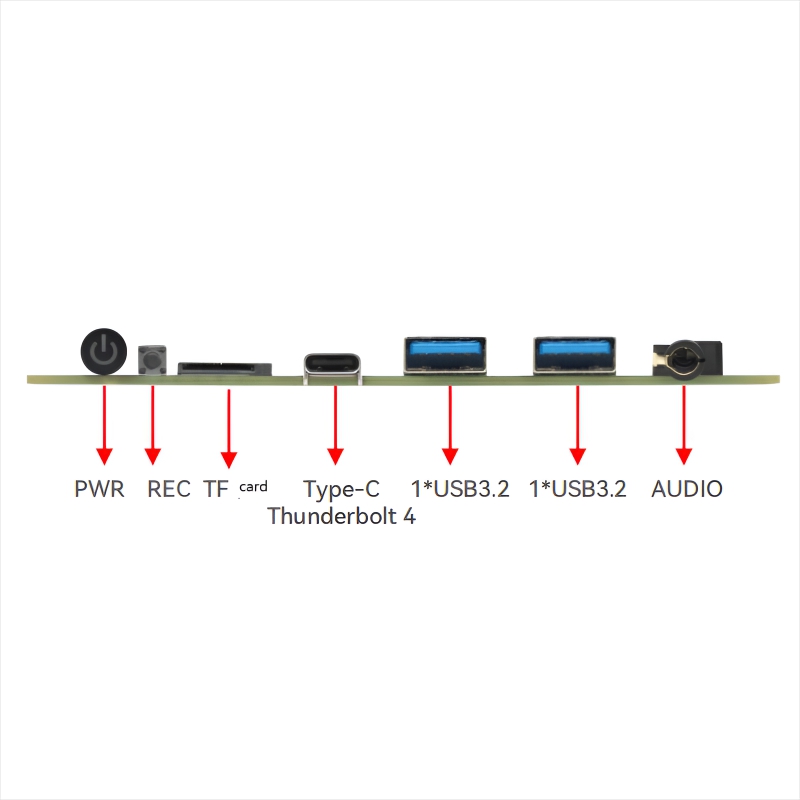

Memory	2*SO-DIMM DDR5 5600MHz Max96GB	Front I/O interface	1*PWR key
sound effects	Onboard ALC897 audio decoding controller		1*CLR_CMOS key
network card	Onboard 2 * Intel i226-V network card (2.5G)		1*TF card
storage	1M.2 M Key, Support SATA/PCIEx4 adaptive; 1M.2 M Key, Support SATA		1*Type-C
expansion slot	1*M.2 E Key， Support WiFi/Bluetooth module expansion;		1*USB3.2
I/O chip	IT8613E		1*USB3.2
BIOS	AMI BIOS		1*AUDIO
power supply	DC 19V power supply (recommended to use 19V 4.74A power adapter)
system	Window10/Window11/Linux

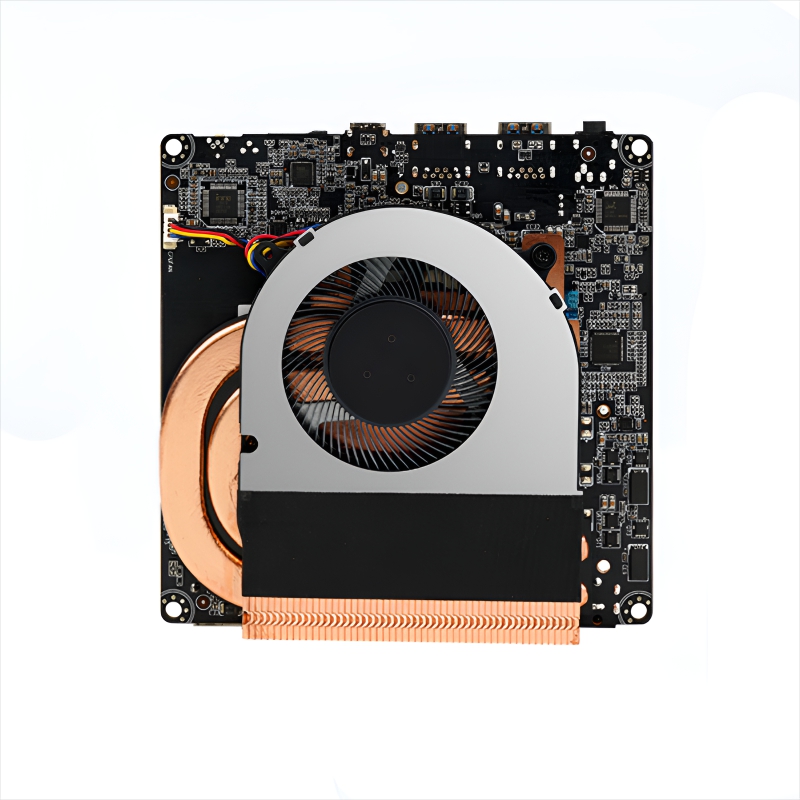

environment	Work: 0~60 ℃; Storage: -20 ℃~75 ℃;	Internal I/O pins	1*CPU_FAN contact pin
environment	0%~95% relative humidity, no condensation
size	120 x 120 mm
