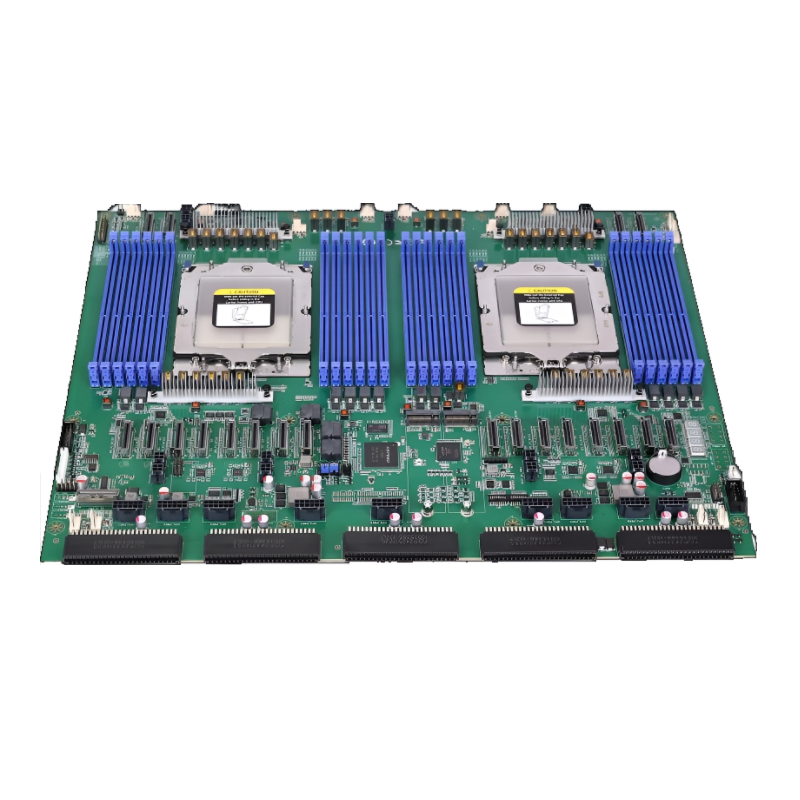

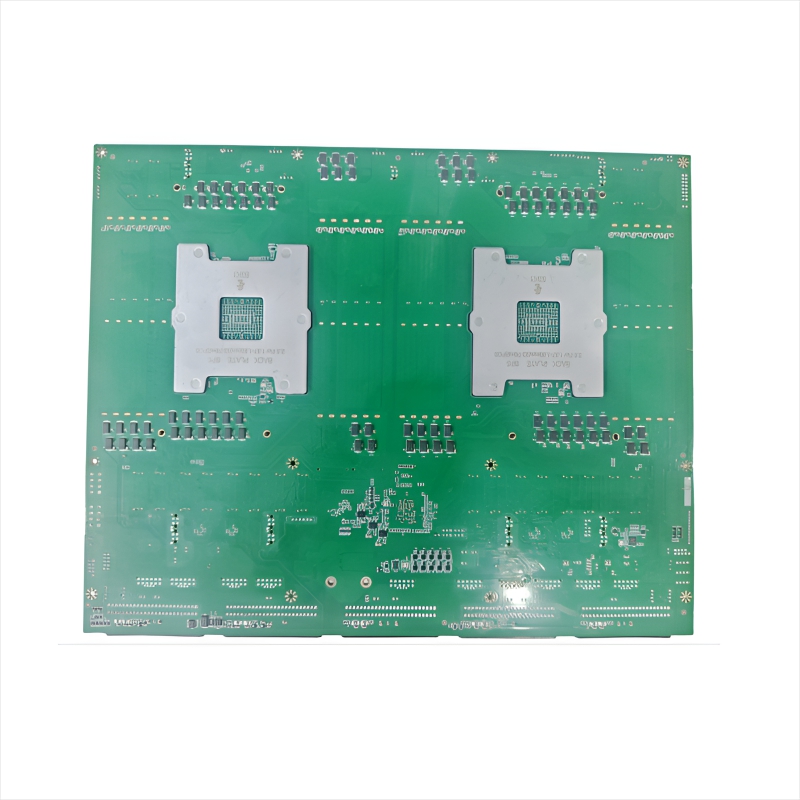

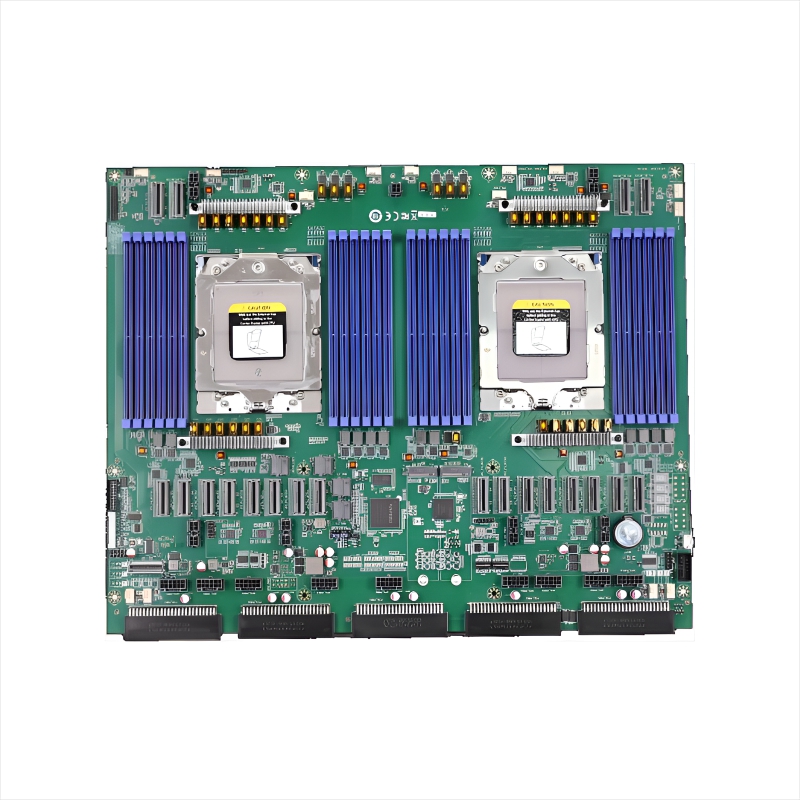

AMD EPYC X86 server motherboard Model:LY-AMD-2U

Model:LY-AMD-2U

Functional Features >Supports 1/2 9004/9005 AMD EPYC processors >Supports 24 memory slots for 1DPC >Support 20 MCIO PCle5.0 X8, flexible configuration according to requirements >The motherboard supports 2 M.2 NVME; >The motherboard has an independent IPMI gigabit management network port, which can achieve remote management and control, as well as KVM function >Support simultaneous insertion of 5 CRPS power supplies

Tel:+86-18938679872

Inquiry

Product specifications

CPU	Supports 1/2 9004/9005 AMD EPYC processors A single CPU can support a maximum of 400W A single CPU can support up to 160 cores
BMC	ASPEED AST2600
Memory	Supports 24 memory sticks Max Memory(1DPC):Up to 6TB4800MT/s ECC DDR5 RDIMM(AMD EPYCTM 9004 Series Processor Max Memory(1DPC):Up to 6TB 6000MT/s ECC DDR5 RDIMM(AMD EPYCTM9005 Series Processor
expansion slot	20个MCIO PCle 5.0x8 2个M.2 Interface:PCle 3.0x4 Form Factor:2280 Key:M-Key 1个COM pin header(2.54mm间距9pin)
I0	1 USB 3.0 pin, supports two USB 3.0 ports 1 VGA pin“
I0	1个MCIO接IO板(2USB3.01VGA 1MNG MDIO 1PCle 3.0)
temperature	Operating:0 to 60℃ Storage:-20 to 75℃
humidity	5 to 95%RH(non-condensing)
Motherboard size	16.8x 13.5inch(42.6cm x 34.29cm)
