| unctionality | technical specification |
| system | Android 13 |
| CPU | Rock Chip 3568 |
| RAM | 2GB |
| SSD | 32GB |
| hold | 8 " (800x1280), with touch, 24 hours working, 35,000 hours |
| camera | 2M |
| Case: 120 * 45 * 18mm, USB interface, 13.56MHz (ISO 14443 Type A and Type | |
| RFID Reader | B and ISO 15693, EMI authentication line 1.8 meters long connected to the face |
| machine, the other end of the RFID of the gate | |
| Relay Controller | 4-way, two-way, receive and send the image signal |
| communication | Network, Bluetooth, and NFC |

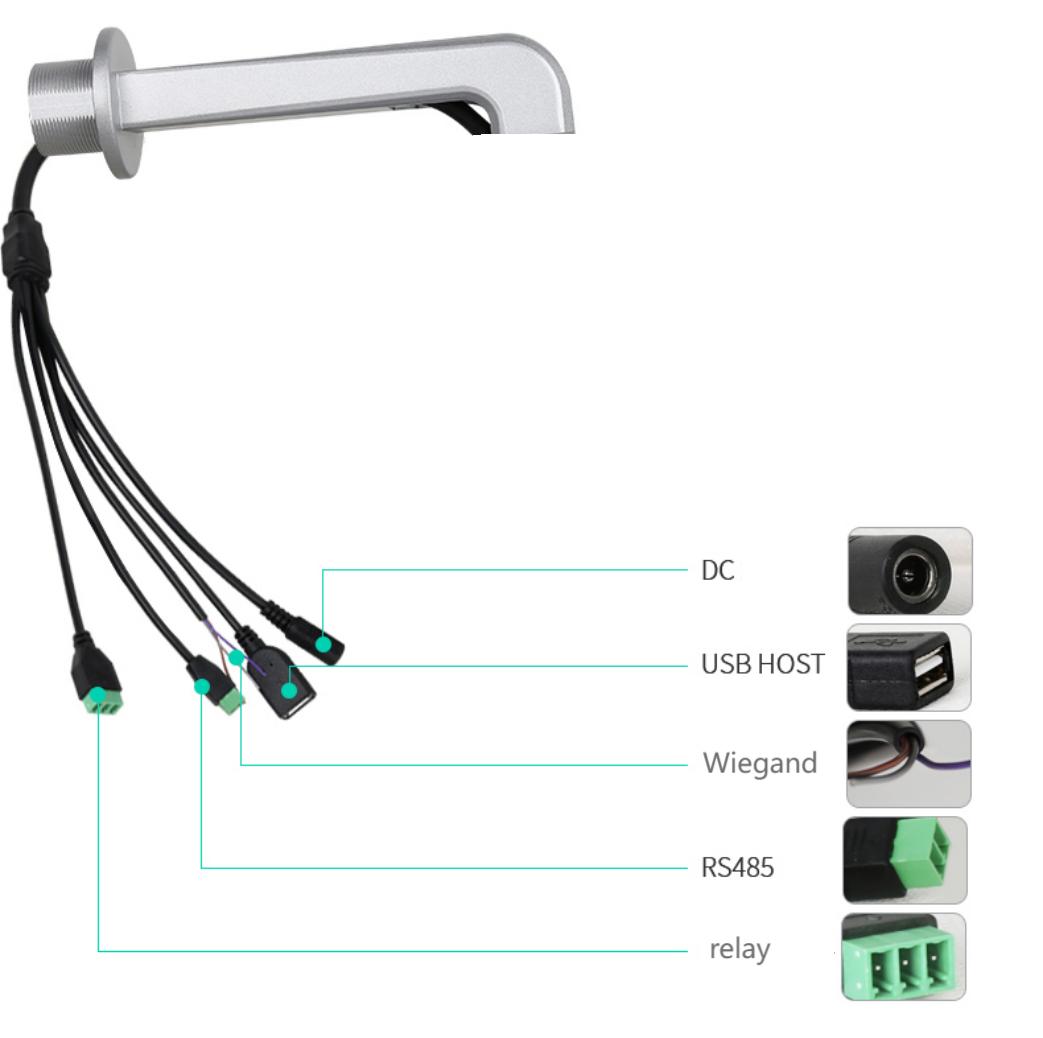

| joggle | 1 RS232,1Gigabit RJ 45,2 USB2.0,1 DC In, 1 Weigen, 1 RFID line |
| Weigen | Two-way, receive and send Android 13 signal, built-in machine inside |
| support | 5-10CM expansion |
| hull | Dimensions of 268mmx 146mmx 42mm |
| work environment | -5℃ ~ 50℃ |
| attestation | IP60, CE, RoHs, Optional: Quality Mark, ISO |
| weight | 2.8KG |
| pack | Dimensions of 320mmx 250mmx 150mm |
| remarks | 3 Years Warranty |
